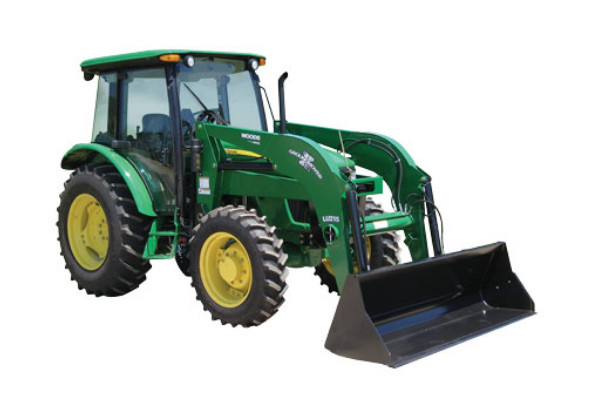

Woods LU215
Double tap to zoom
LU LU215
Overview:
Load or haul any material with Woods Front-end Loaders.
Engineered with convenience and ruggedness in mind, Woods Loaders are perfect for commercial landscaping jobs or around the farm or ranch. The mid-attaching loader boom provides optimal visibility and maneuverability for those tight places. The wrench-less, two-pin mid-attach mount system offers greater flexibility for your tractor. The unique 4-bar bucket linkage allows a 35-degree bucket roll-back angle for less material loss and a 50-degree bucket dump angle to ensure complete emptying. And Woods Front-end Loaders can be painted to match almost any tractor brand – completing your professional look.
- Less
Load or haul any material with Woods Front-end Loaders.
Engineered with convenience and ruggedness in mind, Woods Loaders are perfect for commercial landscaping jobs or around the farm or ranch. The mid-attaching loader boom provides optimal visibility and maneuverability for those tight places. The wrench-less, tw... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
- Tractor HP range: 50-100 hp 2WD and FWA Utility Tractors
- 138-inch maximum lift height
- Offers greater clearance for FWA tractor tires while still adapting to 30-inch row crop applications
- Heavy-duty 1.25-inch greasable pins provide strength and wear resistance to pivot areas
- Modern replacement option for older DuAl® 200 and 215 series loaders
- Commercial grade bucket with round-back bucket for even material flow
- Four-bar bucket linkage maximizes bucket roll back and dump angles
- Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
- Can be painted to match most tractor brands
Specifications
| Recommended tractor horsepower | 50-100 hp |
| Bucket widths | 84" |
| Bucket rated capacity c.c. ft. (66" / 72") | 20.8 |
| Working width | 5" |
| Maximum lift height | 138" |
| Clearance under bucket | 111" |
| Reach at maximum height | 28" |
| Bucket roll back angle | 22° |
| Bucket dump angle | 45° |
| Tested hydraulic PSI | 2,750 psi |
| Lift capacity at bucket pin | 3,600 lbs |
| Breakout at bucket pin | 5,100 lbs |
| Lift capacity at 19.7" ahead of bucket pins | 2,400 lbs |
| Breakout at 19.7" ahead of bucket pins | 3,600 lbs |
| Pivot pins diameter | 1.25" |
| Lift cylinder diameter | 2.76" |
| Bucket cylinder diameter | 2.76" |
