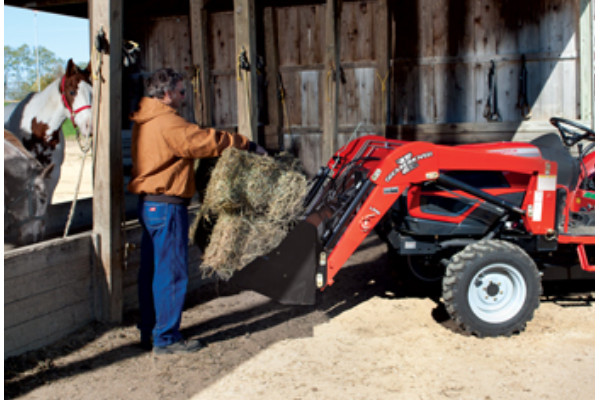

Woods LS96
Double tap to zoom
LS LS96
Overview:
With over 65 years in the loader business, Woods Groundmover-X loaders provide you with the ability to complete virtually every rugged job faced, while delivering years of worry-free service.
Fits subcompact tractors for homeowners and landscapers.
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
- Tractor HP range: 20-35 hp
- 96-inch maximum lift height
- Commercial grade bucket with round-back bucket for even material flow
- Mid-attaching loader boom for greater visibility and tire clearance, greater turning flexibility and shorter turn radius
- Optional Skid Steer Quick Attach system available
- Can be painted to match most tractor brands
Specifications
| Recommended tractor horsepower | 20 - 35 hp |
| Maximum lift height | 96" |
| Clearance with Attachment Dumped | 79" |
| Lift Cylinder Size | 1.77" |
| Bucket Cylinder Size | 1.77" |
| Lift Capacity at Bucket Pins | 1,125 lbs |
| Lift Capacity 19.7" Ahead of Bucket Pins | 800 lbs |
| Breakout Capacity at Bucket Pins | 2,075 lbs |
| Breakout Capacity 19.7" Ahead of Bucket Pins | 1,575 lbs |
| Working width | 4" |
| Maximum Dump Angle | 41° |
| Maximum Roll-back Angle | 24° |
| Reach at maximum height | 18" |
| System Pressure for Capacity Ratings | 2,250 psi |
| Pivot Pin Diameter | 1.00" |
| Number of Bucket Cylinders | 1 |
| Bucket widths | 60" |
| Bucket Heaped Capacity (cu. ft.) | 9.4 cu. ft. |
| Skid Steer Quick Attach | Optional |
